Sensor & Actuator Terminal Blocks

Simplifying Sensor & Actuator connections

Simplify wiring of sensors

With the proliferation of sensors in modern industrial equipment, CPPT and CPST series terminal blocks offer a compact and efficient solution for wiring. With a terminal width of just 3.5 mm, these terminal blocks facilitate simplified wiring of 3-wire & 4-wire sensors. These terminal blocks features the advance Push-in Technology with colour coded push buttons, ensuring error free and secure wiring. For applications involving sensors with ground wire an additional variant with ground connections are also available.

Advantages

Sensor connections in just 3.5mm width!

3-wire & 4-wire Sensor Terminal Blocks

Colour coded push buttons for error free wiring

Colour coded jumpers for ease of circuit distribution

LED variants for signal status indication

Highlight

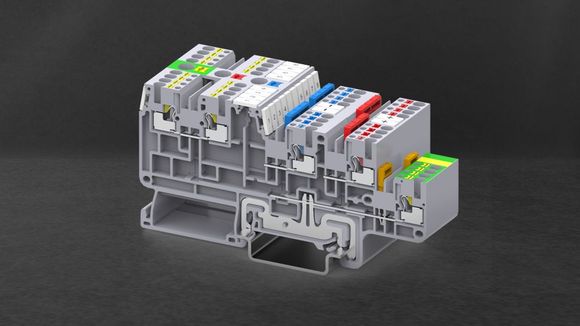

Push-In Technology Sensor & Actuator Terminal Blocks

CPST1.5/4L series terminals

CPST1.5/4L series is a 4 wire sensor terminal block with LED indication. All the sensor wires can be connected in a single terminal block with a width of just 3.5mm. Each connection points has its own colour coded push button which helps in error free wiring. For potential distribution, each connection point can be jumpered using standard pluggable jumpers.

Sensor & Actuator terminal blocks with ground connection

CPSTG1.5/4L series terminals

CPSTG1.5/4L sereis terminal is a 4 wire sensor terminal block with additional connection point for ground wires. All the sensor wires can be connected in a single terminal block with a width of just 3.5mm. Each connection points has its own colour coded push button which helps in error free wiring. For potential distribution, each connection point can be jumpered which enables users to avoid complex wiring. The lower connection point with green-yellow marking can be used to connect ground wires for per

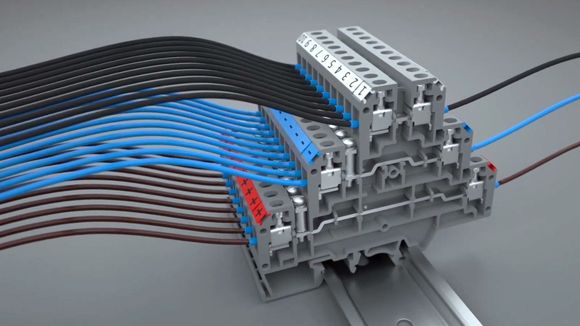

Screw Clamp Sensor Terminal Blocks

CTL Series

CTL2.5UH series terminals are an ideal choice for connecting 3 wire sensors. The top level of the Terminal Block provides connection points for signal wires, while the middle and bottom level are used for positive and negative potential distribution using standard jumpers. In applications where switching indication is required choice of CTL2.5UL & CTL2.5UHL with built in electronic components is available.
