In a data driven world, even machines and electrical equipments need sensory and mechanical data to function effectively. Much of that data is in the form of motion creation or object detection. These sensors and devices require precise and stable signal inputs to manage their efficiency without interruptions. Read on to discover more about proximity sensors and actuators, and how their reliability can be ensured for optimum machine efficiencies.
A proximity sensor, also called a proximity switch, is a type of contactless sensor that is used in many process driven industrial operations. There are various types of proximity sensors that are used in industrial automation such as - Inductive Proximity Sensor, Optical Proximity Sensor, Capacitive Proximity Sensor, Magnetic Proximity Sensor, Ultrasonic proximity Sensor, besides others. While the working principle of individual sensors may vary as per their specific operation, their main function remains the same, which is sensing the presence or absence of an object. Actuators are devices which convert electrical energy into mechanical motion. There are different types of actuators, which are categorised depending on their movement type (linear or rotary) or on their source (Pneumatic, Hydraulic, Electric, etc).

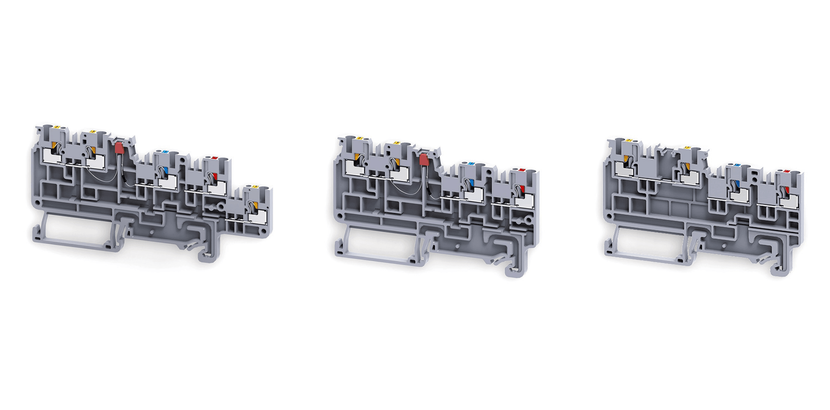

The wire sizes of sensors and actuators can be as small or less than 0.5 sq. mm (24 AWG). Connecting these kind of wire sizes to a conventional terminal block with a screw connection takes a large amount of time and effort. Also, wiring these kind of devices to individual terminal blocks can take up more space than what is available. Connectwell Sensor Terminal Blocks are an ideal choice for control systems where sensor and actuator applications are involved. The simplified connections tremendously increase wiring density in the circuit and saves time, space and their associated costs. These terminals are designed in such a manner as to be easy to connect, at the time of installation, as well as easy to check on during routine maintenance cycles.
Terminal thickness as low as 3.5 mm - Connectwell Sensor and Actuator Terminal Blocks are ideal for wiring machine control systems as they are extremely compact with a terminal thickness of as low as 3.5 mm. This saves a large amount of space inside control cabinets thereby saving costs.
Accommodates 1.5 sq. mm (24 AWG) wire size - As most sensor wires are extremely thin, Connectwell Sensor Terminal accepts wire dimensions of 1.5 sq. mm (24 AWG) which make it easy to connect.
Push-In Connections - The use of convenient Push-In connections saves time in wiring over traditional screw connections which absorb more man-hours and associated project costs.
Pluggable Jumpers - With Pluggable jumpers, the system can ensure the distribution of supply to all sensors easily. Dual jumpering channel enables distribution of supply to hundreds of connected sensors through the same power supply Terminal Block.
Connectwell Sensor and Actuator Terminal Blocks can be used in a variety of sensor connection applications across industries to deliver efficiency, as well as space and cost reduction. Industries that benefit from Connectwell Sensor and Actuator Terminal Blocks include:
With more than 15 international product certifications backed by the most stringent quality standards, our products pass through more than 40 quality assurance tests. This has ensured a ready acceptance of Connectwell terminal blocks across 80+ countries and in thousands of projects and applications worldwide.
Through our 4 decades of experience with state-of-the-art operations which are ISO certified, Connectwell has grown to become one of the leading manufacturers of terminal blocks in the world.
More than 1 million connections are made every day across the globe with Connectwell terminal blocks, making Connectwell a synonym for… the right connection.
To know more about how Connectwell can contribute to your applications, please reach out to us at connect@connectwell.com or +912517120600 / +912516762600
