Multi-Level Terminal Blocks

Optimize space & streamline High Density wiring

Multi-level terminal blocks are designed to provide efficient wiring solutions by incorporating multiple levels within a single terminal block. These terminal blocks feature two, three or even four levels, maximizing space utilization and enabling high wiring density. Each level serves as an independent feed-through function, ensuring separation of circuits. Jumpering feature for cross connections are also available on all levels.

Depending on the terminal block variant and specific application needs, there are specific terminals which feature feed-through function along with dedicated ground function on different levels within the terminal block. Additionally, internally shorted multi-level terminal blocks are suitable for circuit distribution in electrical installation.

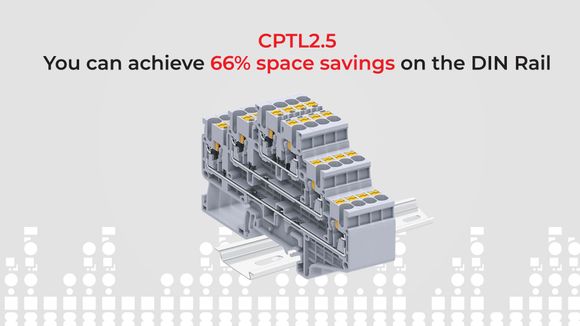

Multi-level terminal blocks significantly reduce space requirements within control cabinets and help in enabling high density wiring in various applications.

Advantages

Multi-level Terminal Blocks are available with Push-In, Spring, & Screw Clamp connection technology.

Jumpering possibility at each level

Marking tag carrier accessory for clear identification of levels

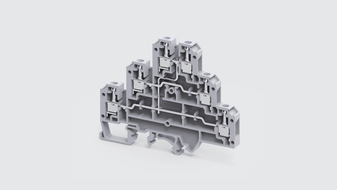

Distribution function with internally shorted variants

Marking provision on all levels

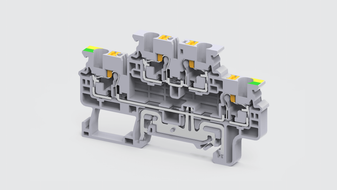

Feed-through and Ground function in single terminal block

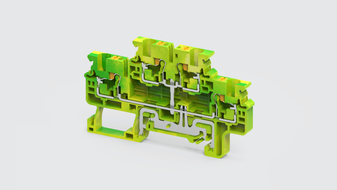

Multi-level Ground terminal blocks in Yellow-Green colour

Highlight

Double level multi-function terminal block

Over current protection and circuit isolation in a single terminal

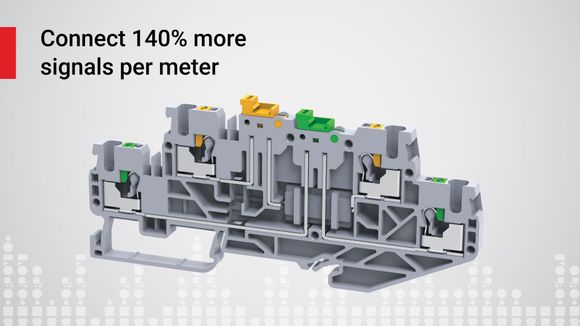

CPDLFK2.5 double level multi-function terminal block, combines two essential functions in a single, compact 6mm wide terminal. The top level has a fuse carrier for over current protection, while the lower level has a knife disconnect function for circuit isolation. This innovative design eliminates the need for separate functional terminal blocks, optimizing space efficiency on DIN rails.

Double level pluggable terminal blocks

CXDL2.5/2B is a double-level pluggable terminal block. Each level features two connection points; input connection with a plug connection & output with a spring clamp system. These terminal blocks are specially designed for application that involves wiring harnesses.

Terminal Blocks with Integrated Electronic Components

Multi-level terminal blocks with integrated electronic components provide enhanced functionality by combining electrical connections with essential electronic circuit elements. These terminal blocks feature factory-built, ready-to-use components such as diodes, resistors, surge suppressors, and temperature sensors, eliminating the need for soldering operations.

75% space saving on DIN Rails

CYTLF2.5 is a screw clamp triple-level fuse terminal block designed for efficient circuit management. It features an integrated fuse carrier on the top level for circuit protection, while the middle and bottom levels provide a feedthrough function for seamless signal transmission. By combining three essential functions into a single compact unit, this terminal block replaces three separate terminal blocks, saving up to 75% of DIN Rail space—making it an ideal solution for DCS marshalling cabinets and space-constrained installations.

CPDL2.5/4 Series

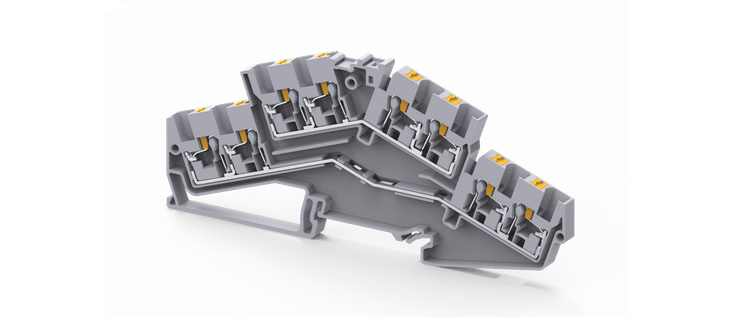

CPDL2.5/4 is a Double Level Multi-connection Push-In terminal block. With its innovative compact multi-level design, this terminal block can accommodate 4 wires on each level, significantly reducing the overall footprint required for wiring. Ideal for applications with high-density wiring needs, this terminal offers both convenience and efficiency in wiring and saves substantial space on DIN Rails.
