Marshalling Terminal Blocks

Smart wiring solutions for complex control systems

The rapid proliferation of complex Distributed Control Systems (DCS) in the field of industrial continuous process plants, has led to the need for high density wiring in control cabinets.

Marshalling terminals with their innovative Push-in connection technology, facilitate the interconnection between field devices and control systems. They serve as an interface between the field wiring (input/output signals from sensors, actuators, or devices) and the control panel or system, allowing for a structured and organized way to manage complex wiring.

Advantages

Available in 4 Level & 8 Level variants

Compatible with small signal wires, ranging from 0.2mm² to 1.5mm²

Colour coded Push Buttons for error free wiring

32 connections in 9mm width

Multiple colour variants for ease of signal connection

Highlight

High density wiring in automation cabinets

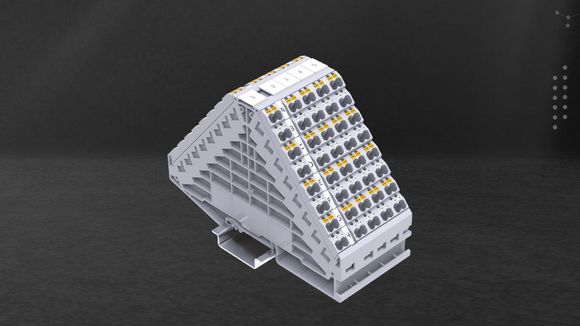

CP8L32 series Marshalling Terminal Block

CP8L32 series is an 8-level marshalling terminal block. It has 32 connection points with advanced push-in connection technology, in a compact width of just 9 mm. Each level is designed to accommodate 1.5mm² wires with color-coded push buttons, ensuring error-free wiring by providing clear visual differentiation during installation. For added flexibility and enhanced identification, these terminal blocks are also available in multiple color variants, which simplifies high-density wiring. With its compact space saving design, these terminals are an ideal choice for signal marshalling in automation & process control industries.

Fuse terminals for DCS Marshalling applications

75% space saving on DIN Rails

CYTLF2.5 is a screw clamp triple-level fuse terminal block designed for efficient circuit management. It features an integrated fuse carrier on the top level for circuit protection, while the middle and bottom levels provide a feed-through function for seamless signal transmission. By combining three essential functions into a single compact unit, this terminal block replaces three separate terminal blocks, saving up to 75% of DIN Rail space making it an ideal solution for DCS marshalling cabinets and space-constrained installations.

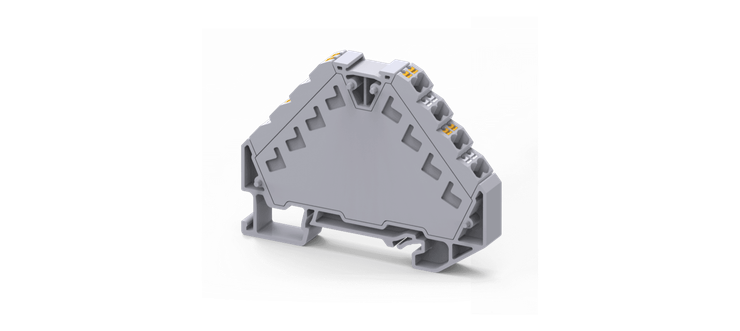

Simplify high density wiring with compact marshalling terminal blocks

CP4L16 series Marshalling Terminal Block

CP4L16 series is an 4-level marshalling terminal block. It has 16 connection points with advanced push-in connection technology, in a compact width of just 9 mm. Each level is designed to accommodate 1.5mm² wires with color-coded push buttons, ensuring error-free wiring by providing clear visual differentiation during installation. For added flexibility and enhanced identification, these terminal blocks are also available in multiple color variants, which simplifies high-density wiring. With its compact space saving design, these terminals are an ideal choice for signal marshalling in automation & process control industries.
