Connectwell’s 8 Level Marshalling Terminal Blocks with Push-In Technology help shrink the size of marshalling cabinets and ease out their wiring.
With the advent of Industry 4.0 and the realization that industrial control systems can be made much smarter, there has been an exponential increase in the number of sensors now being used in process control systems. With this there has also been a substantial increase in the number of field wires that need to be connected into control cabinets or field junction boxes. Connectwell’s 8 Level (CP8L32 Series) Terminal Blocks help reduce the complexity when terminating such dense field wiring and also help reduce the size of control cabinets and field junction boxes.

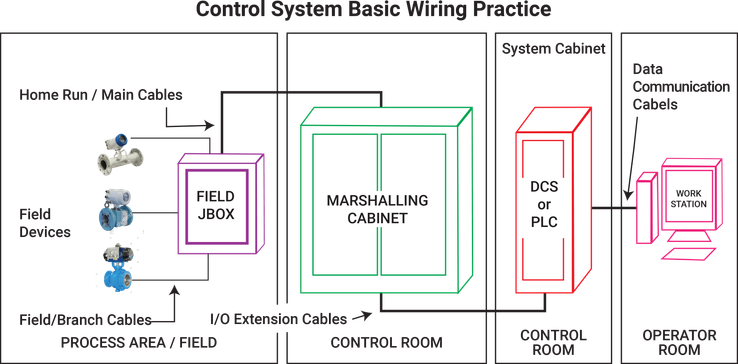

Each field junction box may have a large number of analog and digital sensors and actuators being terminated into them. These devices are then connected to the central control panel using 16 pair or 24 pair multi-core cables. So the cable that runs from the field junction box to the central control system can have both digital and analog signals and also both input and output signals. This creates a problem inside the control panel. How does an engineer now re-distribute these signals such that all signals of a type are routed to the correct DIgital or Analogue I/O module of the controller?
To answer the above question a marshalling cabinet or marshalling control panel is used in which using either a single or sometimes two banks of terminal blocks the field wires are crossed over to the correct I/O module and correct channel of the controller. This process is called cross marshalling. Marshalling cabinets are the interface between field junction boxes and the system control panel. Marshalling Control Cabinets are one of the primary applications of 8 Level Terminal Blocks (CP8L32) that require extremely dense wiring from the field to be terminated into the I/O cards of the controller But the fact that these can take on the task of high density wiring makes them suitable for a broad range of applications which require a reduction in the size of the control panel along with easy identification and management of wires.
8 Level Construction - This allows for a very high wiring density, allowing for up to 32 individual connection points. This saves precious space inside control cabinets.
The Push-In Advantage - Push-In technology on these terminal blocks allows tool free and rapid wiring, which is a huge advantage when dealing with hundreds of wires.
Colour coded push buttons offer quick identification of termination points eliminating errors in wiring.
The compact design and the additional space allow for easy expansion of number of connections in case of any last minute changes and increase in I/Os
Completely closed design of CP8L32 ensures safety of personnel and signals.
Each Level of the terminal block can be marked, allowing for creation of an identification matrix with the top level markers. This allows for each connection point to be easily identified with a two position marking identification.
Each Level has a redundant connection point which can help connect the redundant signal from the field or the control system.
Easy distribution of signals/power using internally shorted versions of the terminal blocks is also possible.
The only constant in the modern world is the fact that it will keep changing and becoming more complex. 8 Level marshalling Terminal Blocks with Push-In technology helps simplify your wiring and bring order to the complex world of marshalling and high density wiring.
