Terminal Blocks for Rail Transportation Systems

Railways

Innovative solutions for sustainable mobility

Rail Transportation Industry plays a vital role in shaping todays mobility requirements.

It is a climate-smart, efficient and reliable method for moving people or freight. As one of the most sustainable forms of land transport, rail transportation is an important element in meeting global low emission goals.

Connectwell has a variety of solutions suited for the entire Rail Transportation eco-system. These include specialised Terminal Blocks for Power Distribution systems inside Locomotives & Coaches as well as high performance and high endurance products for trackside signalling and communication equipments. All of these products comply to some of the most stringent standards such as EN45545 and EN61373.

Application Areas

Providing reliable and robust solutions for rail network operators

Connectwell Terminal Blocks and Interfacing Relay Solutions find applications either alongside rail tracks or inside rolling stock. Our product solutions adhere to all major global certification requirements.

Rolling Stock
Signalling & Control

Suitable Applications

Power Feed and Distribution control cabinets
Lighting and HVAC control cabinets
Driver Desk Panel
Battery Fuse Panel
Location Box - Train Detection
Signalling Systems

Approvals

Our products comply with EN45545 and EN61373 standards.

Product Gallery

Not Just Products, But Solutions based on Constant Innovation

CX4/4

4 sq.mm. multi-connection, Spring Clamp Terminal Block. Suitable for applications with extreme vibrations like rail transportation. Compliant with EN45545 and EN61373 standards.

CXK4/3

4 sq.mm. multi-connection, 3 wire, Knife disconnect, Spring Clamp Terminal Block. Suitable for applications with extreme vibrations like rail transportation. Compliant with EN45545 and EN61373 standards. With its dedicated openings for test probe insertion and the ability to create disconnects, it is an ideal choice for testing signal control box applications alongside rail tracks.

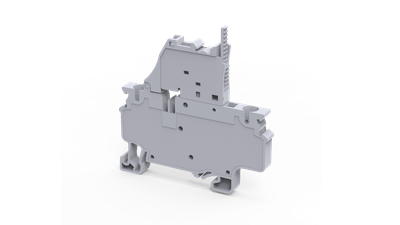

CXF4L6-60V

4 sq.mm. Spring Clamp Terminal Block with Fuse disconnect and suitable for applications with extreme vibrations like rail transportation. Compliant with EN45545 and EN61373 standards. It has an integral carrier element for connecting glass and ceramic cartridge fuses which help in circuit protection.

PTB35/50SH

PTB series Power Terminal blocks have a built in Nut & Bolt system for creating vibration proof connections. They have integrated shrouds for complete protection against live elements. The PTB range extends to terminals capable of connecting upto 300 sq.mm. cables making it an ideal choice for Power Distribution cabinets in locomotives and coaches.

CM1.5S

1.5 sq.mm. panel mounting, Spring Clamp terminals ease the wiring requirements of lighting and control elements inside rolling stock. They are extremely compact and with the proven Spring Clamp technology, they can withstand severe vibrations.

CX2.5/4(E)D1

2.5 sq.mm. Spring Clamp terminal blocks with built in1N4007 or 1N5408 Diodes for protection against reverse polarity. These help in protecting critical circuits from damages due to reverse currents

Connectwell CX Series Spring Clamp Vertical Fuse Terminal Block (CXVF)Terminal

Connectwell's Single & Double Stud Terminal Blocks for Rolling Stock Applications

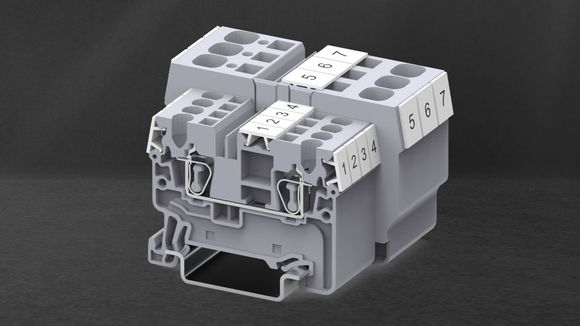

Spring Clamp Terminal Blocks

Connectwell's Stud Terminal Blocks

Connectwell CX Series Spring Clamp Vertical Fuse Terminal Block (CXVF)Terminal

Connectwell's Single & Double Stud Terminal Blocks for Rolling Stock Applications

Spring Clamp Terminal Blocks

Global Presence

India North America South America Europe Africa Middle East Rest of Asia Oceania

For more than 4 decades, Connectwell has worked with some of the most prominent rail network operators in India. With its exhaustive range of Terminal Blocks, Interfacing Relays and Power Solutions, some of the most challenging requirements of the Rail Industry have been successfully fulfilled.

Some of our successfully executed projects:
