Panel Mount Terminal Blocks

Modular configuration for small spaces

Engineered for maximum efficiency and durability, our Panel Mount Terminal Blocks provide a space-saving, high-performance solution for industrial, automation, and control panel applications. Unlike traditional DIN rail-mounted alternatives, these terminal blocks eliminate the need for rail support by offering direct screw mounting, which simplifies installation.

Designed for flexibility, these terminals are stackable, enabling secure interlocking between blocks for enhanced stability in multi-circuit setups. Their compact footprint maximizes space efficiency without sacrificing performance, making them ideal choice for space constrained applications.

Advantages

Space saving compact design for easy installation in confined spaces

2 Conductor and 4 Conductor variants

Simplified installation with direct mounting

Versatile connection technologies

Multiple colour variants

Highlight

Spring Clamp Panel Mount Terminal Blocks

CM Series panel mount terminals

CM Series panel mount terminal blocks are designed for space-constrained applications. They offer a compact and efficient wiring solution without the need for DIN rail mounting. These terminal blocks can be directly mounted onto a panel surface using screws. Suitable for wire sizes of 1.5mm², 2.5mm², and 4mm² and are available in both top and side wire entry configurations. These terminals provide flexibility in wiring layout, and are offered in 2-conductor and 4-conductor variants for efficient multi-wire connections.

Screw Clamp Panel Mount Terminal Blocks

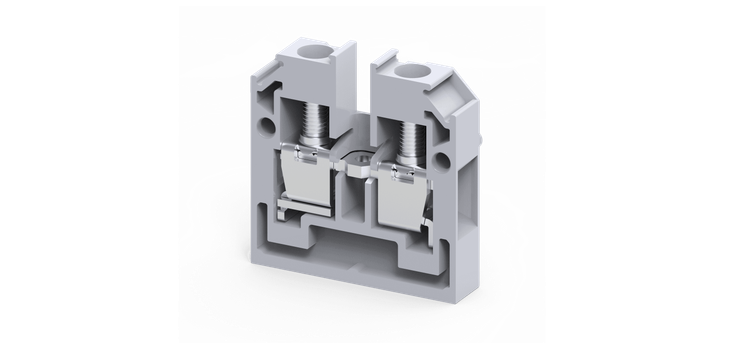

CMB4 screw clamp panel mount terminal blocks

CMB4 is a screw clamp, panel mount terminal block. Multiple CMB4 terminal blocks can be stacked together to create a ready-to-use assembly, which can then be easily surface mounted on the panel surface using standard screws. For added convenience, a center screw-type jumper allows for efficient shorting of multiple terminal blocks, enhancing flexibility in wiring configurations. Additionally, marker slots are provided on both sides of the terminal block to facilitate easy identification and labeling, ensuring a well-organized and error-free setup.

Multi-connection Panel Mount distribution terminal blocks

CSCP2.5T2 series multi-connection panel mount terminal blocks

The CSCP2.5T2 is a 4-conductor spring clamp terminal block designed for panel mount applications. It features four connection points linked to a single current-carrying element, allowing one point to serve as an input while the remaining points can be used as outputs. This design makes the CSCP2.5T2 an ideal solution for efficient circuit distribution within confined spaces.

Spring Clamp Panel Mount Terminal Blocks

Multi-connection Panel Mount distribution terminal blocks
