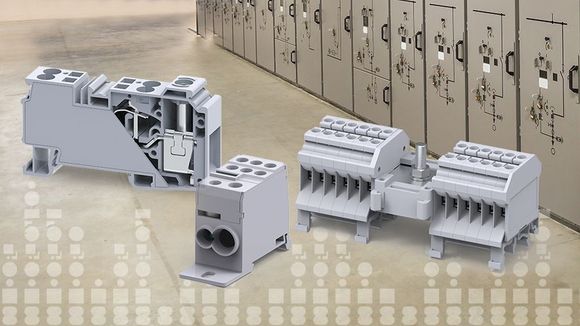

Distribution Terminal Blocks

Power & Signal distribution made easy

Distribution terminal blocks are essential for efficient power and signal distribution in industrial control panels, automation systems & marshalling applications. Designed to streamline wiring, they ensure & enable the safe and organized distribution of electrical power and signals.

Typically, these terminal blocks have one input connection, while the number of output connections varies based on application requirements. These terminal blocks facilitate easy installation, flexibility and scalability.

Available in various connection technologies, including Screw clamp, Push-in, Spring clamp & stud / bolt type, these terminal blocks are compact and modular in design allowing easy installation, optimizing space while maintaining a clean and structured wiring layout

Advantages

Ready to wire, Pre-configured terminals

Colour variants for Phase identification

Reduced installation time improves efficiency & saves man-hours

Simplified & organized wiring improves working efficiency

Highlight

Lighting Pole Terminal Blocks

CLP35 Series

CLP35/3A series Lighting Pole Terminal Blocks are designed to streamline wiring in street lighting applications. These terminal blocks provide dedicated input, output and looping distribution points. These terminal blocks feature 2 of 35mm² input connection points for power distribution and a 6mm² output connection for pole lights. Their design is ideal for XLPE-type cables, commonly used in street lighting applications due to their durability and superior electrical properties.

Modular Distribution Block

CXDB35 series distribution terminals

CXDB35/10 is a hybrid modular distribution terminal, an innovative power distribution solution that combines screw clamp and spring clamp connection technologies in a single compact unit. The terminal design features a screw clamp connection that can accommodate upto 35mm² wires on the input side & 4 output connection points which can accommodate 10mm² wires using spring clamp connection technology. For applications requiring additional output connections, a CX series feed-through or multi-connect terminal can be seamlessly interconnected using a jumper, allowing for modular expansion.

CMDB Series

CMDB Series Screw Clamp, Compact Distribution Blocks, feature a modular design that allows for flexible system expansion. Available in pre-configured and factory-built variants, these blocks support multiple output configurations, ensuring seamless integration into panels. For enhanced versatility, the CMDB series terminal blocks are available for accommodating 4mm², 6mm², 10mm², & 25mm² wires and can be chosen as per system current rating requirements.

CDB Series

CDB Series Distribution Blocks are designed for high current distribution applications. These terminal blocks have a robust stud / bolt type connection on the input side for connecting large size wires with ring type lugs. At the output side, 4 or more standard screw clamp connections help in optimized power distribution. These series terminal blocks support wire sizes up to 50mm² for input connections and up to 25mm² for output connections.
