Slim Relays

High performance switching, built to save panel space

In modern industrial applications, optimizing space without compromising performance is essential. Connectwell’s CSR series Slim Relays are designed to provide unmatched reliability and efficiency, even in the most compact panels. With up to 66% panel space savings, they help increase component density while ensuring seamless functionality.

Built with a true modular design and an IP20 safety rating, these relays offer superior durability and safe operation. They are available in both electromechanical and electronic variants, catering to diverse industrial needs. Their full contact rating ensures continuous operation, making them ideal choice for demanding environments.

Advantages

Ultra-Slim 6 mm width for maximum space savings

Save 67% panel space as compared to traditional relay boards

Common profile for 1 CO & 2 CO relay modules

Pluggable jumpers for quick commoning

Choice of Electromechanical and Solid State relays

Available in 1 Change Over (1CO) & 2 Change Over (2CO) variants

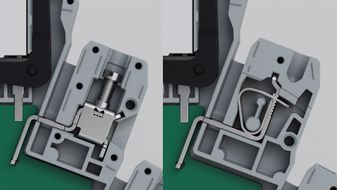

Option of screw clamp or spring clamp connection technology

True full contact rating for continuous operation

Highlight

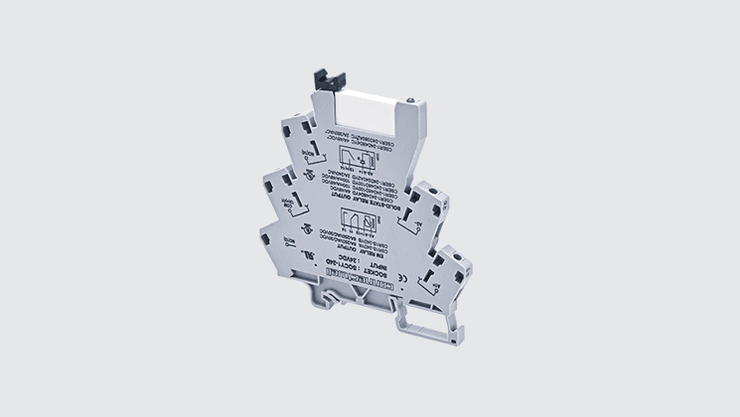

Slim Relays

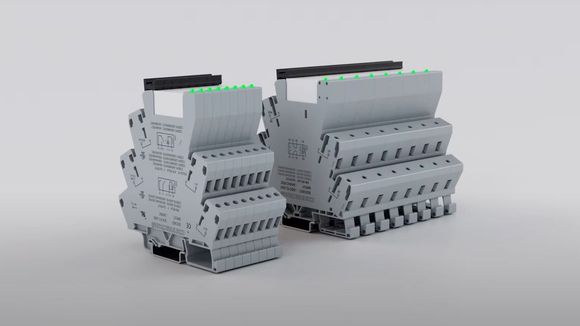

CSR & CSER series Slim Relays

CSR & CSER series Slim Relays are available in a 6mm ultra-slim design, providing up to 67% space savings inside control cabinets, without compromising performance. Available with electromechanical and solid-state relay options, screw and spring clamp connections and a consistent profile for 1CO & 2CO variants, they ensure efficient and reliable operation.

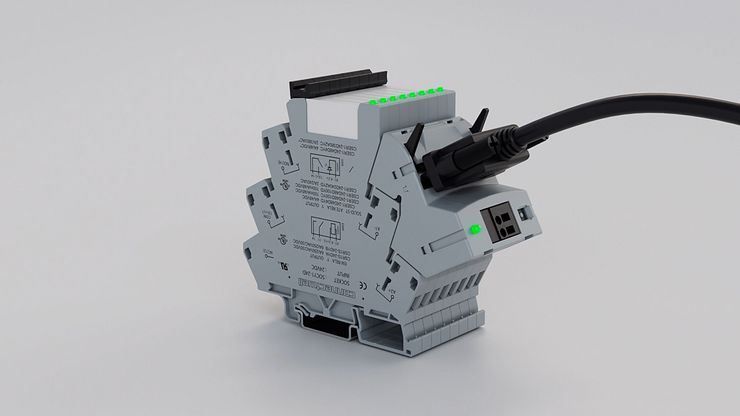

Slim Relay Adaptor

Quick wiring with harnesses

Slim Relay adaptors provide quick and hassle-free integration into various control systems. These adaptors have provision for connecting cable harnesses with male or female, FRC or Sub D connectors. A separate connection point for power is also provided. 8 Slim relays can be quickly connected by plugging in the adaptors in the jumper channels, thereby eliminating the need for connecting wires at individual points.

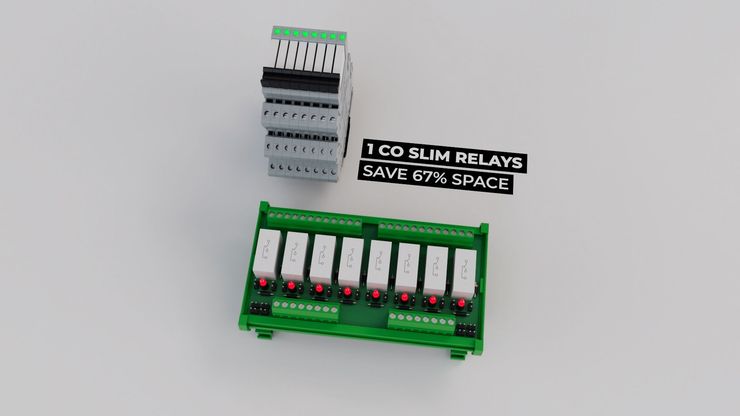

Slim Relays in place of traditional relay boards

Space saving advantage

Traditional relay boards occupy significantly more space, making panel design bulky and less efficient. CSR & CSER series Slim Relays, with their ultra-compact 6mm design, allow for higher component density, reducing overall panel size while maintaining high performance. Space saving of nearly 67% is achieved if 8 slim relays are used instead of an 8 channel relay board.
